Installation Instructions for Chevy/GMC Duramax LLY/LBZ/LMM 6.6L Stealth Module (2004.5-2010)

Included With Purchase

(1x) Stealth Module

(1x) Wire Harness with Fuel Rail Sensor Connections

(1x) Selector Switch

Module

Module

Step by Step Instructions

Let your truck sit with the hood popped, doors shut and the key fob away from the vehicle for at least 20 minutes. It is important to keep the key fob away and the doors shut during the entire installation process. DO NOT bring the key fob near the vehicle or open any doors until AFTER the module is fully installed and connections are verified. This allows the computer to 'sleep' and for your engine compartment to cool down. Failure to do so will result in a check engine light on startup.

Step 1:

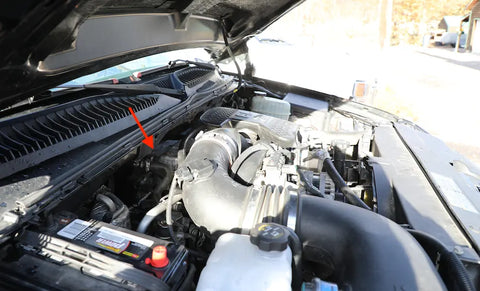

Locate the fuel pressure sensor. It's found behind the intake tube on the passenger side of the engine compartment. If you're having trouble locating it, look near the firewall.

Optional: Remove the air intake tube to access the fuel pressure sensor easier.

Sensor Connections

Step 2:

Disconnect the fuel pressure sensor and plug in the mail fuel pressure plug to the female fuel pressure sensor. Install the female plug into the trucks male wiring harness.

Step 3:

Plug in the 4-position switch to the module's harness. It can be mounted inside the cab for easy access or it can be installed with the module under the hood.

Sensor Connections

Step 4:

Ensure all connections are tight - all plugs should be snap closed when installed properly. Gently tug on all connections to make sure they are secure especially the fuel pressure plug.

The module and switch must be installed away from heat and moving parts.

Turn Dial Clockwise

Stock - Low - Medium - High

Low - Towing at or near the vehicles maximum legal tow rating and low traction situations.
*consult your owners manual for vehicle tow rates

Medium - Moderate towing, around the middle of your vehicles tow rating, and ideal for everyday driving situations.

High - Maximum performance. Ideal for empty highway cruising.

The switch must remain plugged into the Stealth Module to remain in the desired setting. Do not switch power levels with the engine running.

You will see the best results when the selector switch is left in one setting for as long as possible.

Check Engine Light or Hard start on Install?

The most common reason for a check engine light on install is due to the truck not being asleep. If the Stealth Module has already been removed, please start the installation process over while giving special attention to the instructions above step 1. If the Stealth Module is still installed, verify connections and disconnect the negative terminals on your battery for a hard reset. Events that will wake the truck up: Not letting it sit for 15 minutes, opening/closing the vehicle door, having the key near the truck during install.

The most common reason for a hard start on install is due to improver connection. Please verify that all connections are straight and pushed in all the way. Be sure the harness is pushed in tight to the Stealth Module as well.

If you are still having trouble, please give our 24/7 tech support a call at (888) 613-4304

Remove the Stealth Module Before Service

Before going in for service, please remove the Stealth Module so that the truck is back to stock. This allows the technician to have a fresh base line when performing any work.
